Floating and Pitch Compensating Tap Holders

E/F Series

Floating tap holders provide lateral adjustment for operations having open tolerances on hole locations such as stampings or die castings. Pitch compensation tap holders are used to vertically compensate for variations between drill press spindle feed rate and tap lead. Also, they are used on multiple spindle heads, ratio 1:1, requiring taps of different leads.

Style 1 tap holders have vertical adjustment and lateral float. Vertical adjustment of tap is simple, no wrenches or special tools required; just lift knurled top collar and reposition mating serrations of holder and spindle. Float is pivotal and perpendicularity or accuracy of finished holes will be proportional to part hole location tolerances. The tap shank square is used for drive, while a loose running fit at the shank round area provides the float. Tap retention in the chuck is accomplished by an insert engaging a notch in the tap shank diameter.

Style 2 pitch compensation tap holders have vertical float in addition to the same features of style 1. Its design requires the drill press feed rate to be less than tap lead. Vertical float eliminates special drill press feed gears, lead screws or special multiple spindle head ratios.

Ordering Information:

  1. Order by part number; one assembly required for each tap size.
  2. Specify tap size.
  3. Tool holders on existing equipment are identified by the spindle size, outside diameter and length.

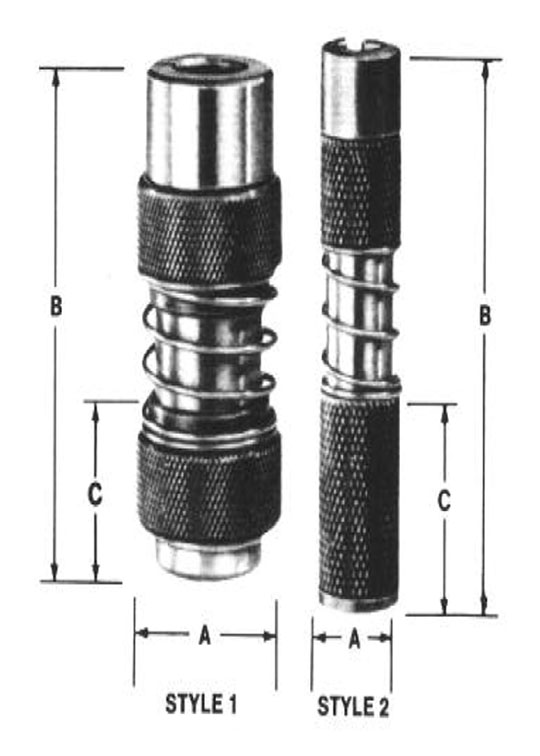

SPECIFICATIONS
Series Style Assembly Part No. Tap Capacity Dimensions Vertical Adjustment Serrated Spindle
A B C Diameter Pitch
4000 1 4000.XXX-00 #0 to 1/4 0.75 1.94 0.81 0.25 0.375 0.040
4100 1 4100.XXX-00 #0 to 5/16 0.91 1.94 0.81 0.25 0.4375 0.040
4600 1 4600.XXX-00 #10 to 13/16
1/16 to 3/8 NPT
1.25 2.78 1.13 0.44 0.625 0.062
4600L 1 4600.LXX-00 9/16 to 11/8
1/16 to 3/4 NPT
1.63 2.88 0.50 0.44 0.625 0.062
6000 2 6000.XXX-00 #0 to 3/16 0.91 2.75 0.66 0.25 0.4375 0.040
6600 2 6600.XXX-00 #0 to 1/4 0.60 2.63 0.66 0.25 0.375 0.040

Part numbers with X to be completed by Createch – specify tap size. C = depth that tool enters holder
* Dimension to bottom of shank square 4600L only

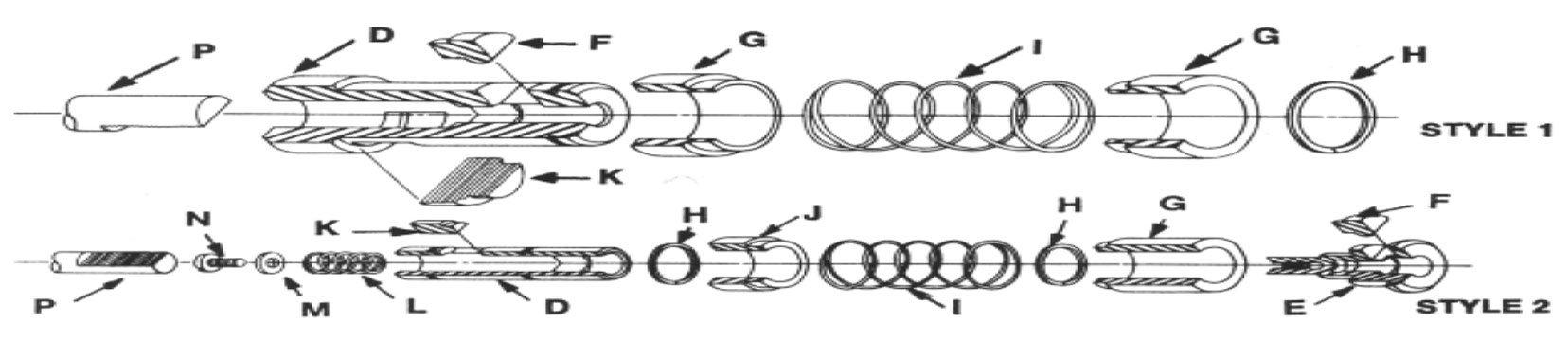

REPLACEMENT PARTS
Series Style Body Tap Insert Tap Lock Bottom Collar Retaining Ring Collar Spring Top Collar Spindle Lock Compensating Spring Washer Screw Serrated Spindle Dia
D E F G H I J K L M N P
4000 1 4001XXX00 NR 4003XXX00 400400000 400500000 400600000 NR 400200000 NR NR NR 0.375
4100 1 4101XXX00 NR 4103XXX00 410400000 410520000 410600000 NR 410200000 NR NR NR 0.4375
4600 1 4601XXX00 NR 4603XXX00 46040000 460500000 460600000 NR 460200000 NR NR NR 0.625
4600L 1 4601LXXX0 NR 4603LXXX0 4604L000 4605L0000 4606L0000 NR 4602L0000 NR NR NR 0.625
6000 2 600100000 6002XXX00 60300000 60300000 410520000 410600000 4.1E+08 410200000 600500000 600600000 600400000 0.4375
6600 2 660100000 6602XXX00 660400000 660400000 NR 660900000 6.6E+08 660500000 660700000 NR 660800000 0.375

Part numbers with X to be completed by Createch – supply tap size and original equipment serial numbers. NR = Not required
