Single Purpose Threaded Collet Tool Holders
Single purpose threaded collet tool holders are available with rigid grip or floating collets and may be used for accurate close center drilling or tapping operations. Style 1 tool holders utilize serrated spindles and have vertical adjustment. Vertical adjustment is accomplished by lifting the top collar on the body, repositioning the mating lock insert to another set of spindle serrations and returning the collar to its original position. Style 2 tool holders are used with Jacobs taper spindles on either multiple spindle heads or drill press spindles; but they do not have vertical adjustment feature.
Standard tooling is used with the rigid grip threaded collets. Drill drive is accomplished by using the shank of the readily available straight shank automotive series drills. Taps are driven by the shank square. On both drills and taps the round portion of the shank is clamped rigidly when the angular areas are tightened and resulting forces collapse the split collet.
- Order by part number as shown in tabulations; assembly includes all components except collets; collets and replacement parts are ordered separately.
- Collets are single purpose, order one collet for each tool size; specify type of tool and size.
- Tool holders on existing equipment are identified by the collet thread diameter, pitch and type of spindle.

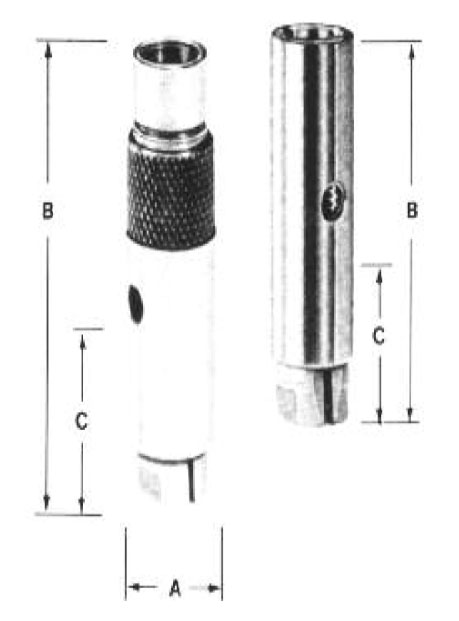

|Series||Style||Assembly Part No||Capacity||Dimensions||Spindle Dia/Taper|
|Drill||Tap||A||B||C Drill||C Tap|
|3800||1||3800.000-00||#60 to 1/4||#0 to 1/4||0.63||2.31||0.87||0.75||.375 Serrated|
|4200||1||4200.000-00||#60 to 5/16||#0 to 5/16||0.88||2.31||1.06||0.81||.4375 Serrated|
|4300||2||4301.1A0-00||#60 to 5/16||#0 to 5/16||0.88||2.06||1.06||0.81||1 Jacobs|
|4300||2||4301.2A0-00||#60 to 5/16||#0 to 5/16||0.88||2.06||1.06||0.81||2 Jacobs|
|4400||2||4301.1A0-00||#60 to 1/4||#0 to 1/4||0.56||1.88||0.88||0.75||1 Jacobs|
|5400||2||5401.0T0-00||#60 to 5/32||#10 to #10||0.47||1.88||0.84||0.75||0 Jacobs XX|
*Assembly includes all components except collets. Collet part numbers are shown in tabulations at bottom of the page.
XX 1 Jacobs available. C = depth that tool enters holder. Style 1 holder have .25 vertical adjustment.

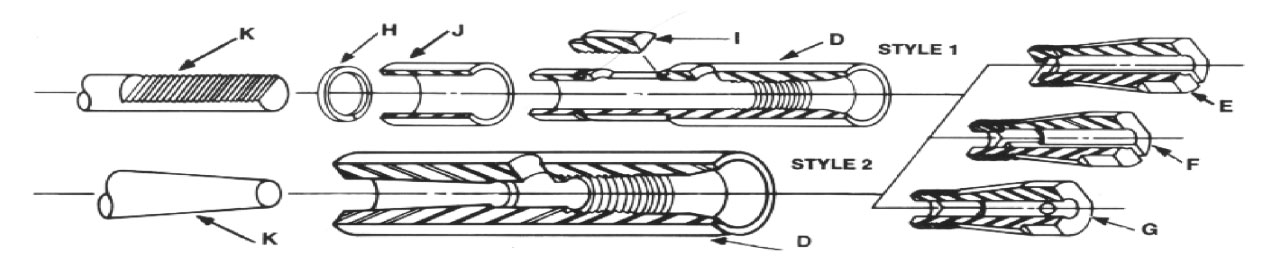

|COLLETS AND REPLACEMENT PARTS|
|Series||Style||Body||Collet||Retaining Ring||Spindle Lock||Collar||Spindle Dia/Taper|
|D||E Drill||F Tap-Rigid||G Tap-Floating||Thread||H||I||J||K|
Part numbers with X to be completed by Createch. Order one collet for each tool size, identify tool and specify shank dia.
NA = Not Available. NR = Not Required.
