Standard Rectangular Universal Drill and Tap Heads

Universal joint adjustable multiple spindle heads for drilling, reaming and tapping

E/F Series

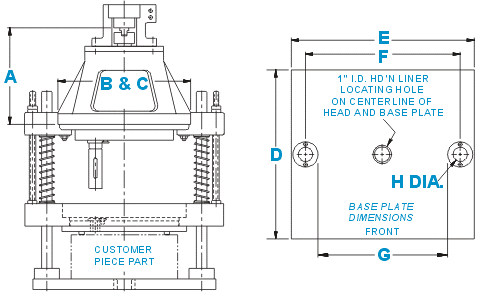

Series Model No of Drives Drilling Area
No 1 M.T. Adj-(in)		 Drill or Tap Cap. M.S. A
Overall Height In.		 B
Outside Length In.		 C
Overall Depth In.		 D
Overall Base Depth		 E
Overall Base Width		 F
Bar Guide Location		 G
Fixture & Part Width		 H
Guide Bar Dia. In.		 Weight Basic Head Lbs. Weight Spindle Assy. Lbs. Max RPM
20"
  412-20 17 4 x 12 5/16 9 1/32 16 1/4 9 9 20 3/4 18 1/2 15 3/4 1 30 2 2000
  1420-20 21 4 x 20 9 29/32 24 8 10 28 1/2 26 23 1/2 1 36 2
  424-20 25 4 x 24 9 27/32 31 8 10 32 1/2 30 27 1/2 1 45 2
  614-20 17 6 x 14 9 27/32 18 10 12 23 20  17 1/2 1 40 2
30"
  412-30 17 4 x 12 3/8 9 1/32 16 1/4 9 9 20 3/4 18 1/4 15 3/4 1 30 2 2000
  420-30 21 4 x 20 9 29/32 24 8 10 28 1/2 26 23 1/2 1 35 2
  424-30 25 4 x 24 9 27/32 31 8 10 32 1/2 30 27 1/2 1 45 2
  614-30 17 6 x 14 9 27/32 18 10 12 23 20 17 1/2 1 40 2
40"
  416-40 17 4 x16 1/2 13 3/4 21 10 10 28 24 1/4 21 1/4 1 1/2 45 4 1200
  616-40 13 6 x 16 13 3/4 24 14 15 30 26 3/4 23 3/4 1 1/2 50 4
  624-40 17 6 x 24 13 3/4 30 12 15 36 32 3/4 29 3/4 1 1/2 115 4
  815-40 19 8 x 15 13 3/4 23 17 16 29 25 3/4 22 3/4 1 1/2 65 4
  1012-40 20 10 x 12 13 3/4 20 1/2 18 14 26 22 3/4 19 3/4 1 1/2 70 6
  1015-40 21 10 x 15 13 3/4 23 18 16 29 25 3/4 22 3/4 1 1/2 75 6
1420-40 24 10 x 20 13 3/4 28 1/2 17 1/2 16 34 30 3/4 27 3/4 1 1/2 95 6
  1424-40 28 14 x 24 13 3/4 32 23 20 37 3/4 34 1/2 31 1/2 1 1/2 150 6
60"
  416-60 17 4 x 16 3/4 13 3/4 21 10 10 28 24 1/4 21 1/4 1 1/2 45 7 1200
  616-60 13 6 x 16 13 3/4 24 14 15 30 26 3/4 23 3/4 1 1/2 50 7
  624-60 17 6 x 24 13 3/4 30 12 15 36 32 3/4 29 3/4 1 1/2 115 7
  815-60 19 8 x 15 13 3/4 23 17 16 29 25 3/4 22 3/4 1 1/2 65 7
  1012-60 20 10 x 12 13 3/4 20 1/2 18 14 26 22 3/4 19 3/4 1 1/2 70 8
  1015-60 21 10 x 15  13 3/4 23 18 16 29 25 3/4 22 3/4 1 1/2 75 8
  1020-60 24 10 x 20 13 3/4 28 1/2 17 1/2 16 34 30 3/4 27 3/4 1 1/2 95 8
  1424-60 28 14 x 24 13 3/4 32 23 20 37 3/4 34 1/2 31 1/2 1 1/2 150 8
80"
  722-80 16 7 x 22 1 19 3/16 16 1/4 31 1/4 12 37 3/4 34 3/8 30 7/8 2 145 10 1200
  1016-80 10 10 x 16 18 7/8 15 1/4 21 1/4         2 150 10
  1022-80 25 10 x 22 18 7/8 17 1/2 30         2 225 10
  1526-80 32 15 x 26 18 7/8 26 37         2 300 10
Contact us for more information
