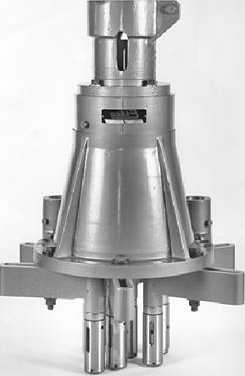

Universal Joint Drive Adjustable Heads

E/F Series

TextUniversal joint adjustable heads are designed and built to provide long and trouble free operation in a production environment.

The following premium-quality features are standard:

  • Full ball bearing gear case
  • Wide face heat treated steel gears
  • Snap on, permanently lubricated and sealed universal joints
  • Bushed guide rod lugs, cast integral with gear case
  • Closed housings provide maximum operator protection from rotating spindle drive parts
  • Provision for spindle end-play adjustment

Note: Overall weight and length are averages, actual will depend on the number of spindles, spindle operations and the type power source utilized.

Spindle assemblies are supplied as needed in bracket arm or cartridge styles, many different capacities, spindle options and center distances are available depending on your job requirements and preferences. In addition, we offer the following accessories cartridge plates, bushing plates, fixture bases and several guide rod options. Contact your Rockford-ETTCO salesperson or factory for complete details.

Model 2005 2104 2106 2110 2117 2406 2410 2412
Drilling Area 4.500 4.562 6.750 9.000 13.000 7.875 10.000 10.000
Spindle Drives 5 5 7 11 13 7 11 13
Capacity / Drive in Steel .250 .375 .375 .375 .375 .750 .750 .750
Approximate Weight / Set-Up 18 lbs 25 lbs 35 lbs 48 lbs 80 lbs 70 lbs 80 lbs 85 lbs
Maximum Overall 9” 15” 16.5” 16.5” 16.5” 22” 22” 22”
Contact us for more information
