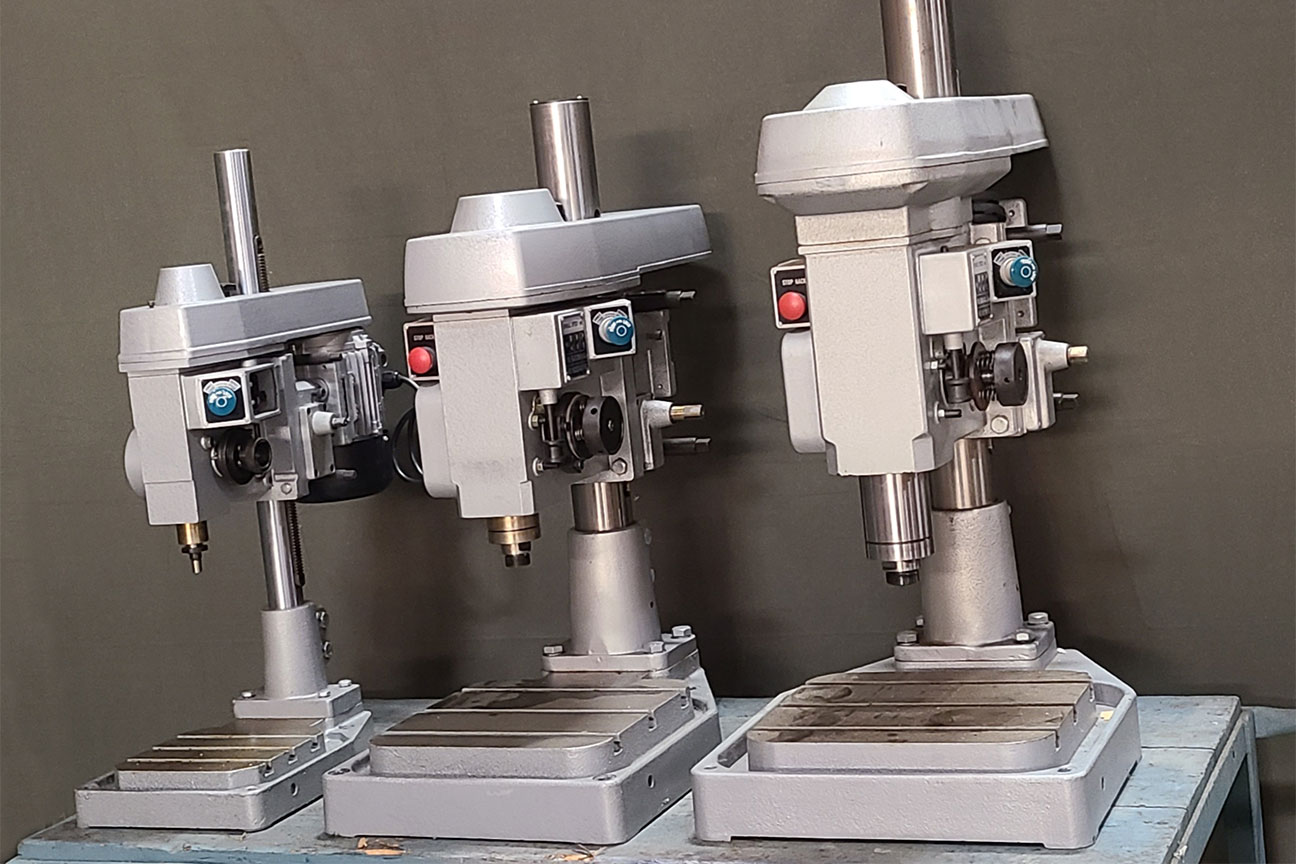

Pitch Gear Tappers
Models Comparison |
ST-1V ST-1H SIT-1 SFT-1 |
ST-2V ST-2H SIT-2 SFT-2 |
ST-3V ST-3H SIT-3 SFT-3 |
|---|---|---|---|
Tapping Capacity |
#0 to 1/2" NC ~M12 |
#4 to 1-1/2"NC ~ M35 |
#6 to 2"NF ~M50 |
Spindle Stroke |
1-3/4" |
2-1/2" |
2-1/2" |
Max Strokes per min |
65 |
30 |
20 |
Max Parts Per Hour |
3900 |
1800 |
1200 |
Repeatability of Stroke |
1/5 of pitch thread 1/5 of turn |
1/5 of pitch thread 1/5 of turn |
1/5 of pitch thread 1/5 of turn |
Motor Rating |
1/2 HP (400 W) |
1-1/2 HP (750 W) |
2 HP (1.5 kw) |
Shipping Weight |
V 250 lbs |
V 550 lbs |
V 750 lbs |
H 175 lbs |
H 400 lbs |
H 575 lbs |
|
Spindle Speeds (rpm) |
560 915 1640 2000 |
210 375 690 1200 |
20 65 130 265 500 |
VFD Available? |
Yes |
Yes |
Yes |
Available Pitch Gears(Standard) |
100, 96, 90, 80, 72, 64, 56, 48, 44, 40, 36, 32, 28, 24, 20, 18, 16, 14, 12, 13 |
48, 44, 40, 36, 32, 28, 24, 20, 18, 16, 14, 13, 12, 11-1/2, 11, 10, 9, 8, 7 |
32, 28, 24, 20, 18, 16, 14, 13, 12, 11-1/2, 11, 10, 9, 8, 7, 6, 4 |
Available Pitch Gears(Metric) |
0.2, 0.225, 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 1.0, 1.25, 1.5, 1.75 |
0.5, 0.6, 0.7, 0.75, 0.8, 1.0, 1.25, 1.5, 1.75, 1.8, 2.0, 2.5, 3.0, 3.25, 3.5 |
0.7, 0.75, 0.8, 1.0, 1.25, 1.5, 1.75, 1.8, 2.0, 2.5, 3.0, 4.0 |
Spindle Size |
Jacobs Taper #2 |
Morris Taper #2 |
Morris Taper #3 |
