Self-Reversing Tapping Head "Attachments"

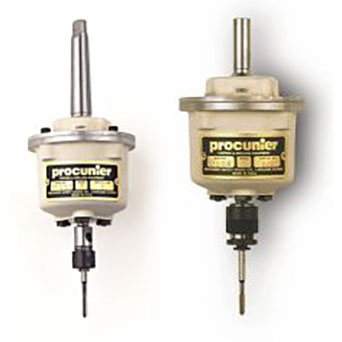

Standard Self-Reversing Tapping Head Attachments – Style E & F
Styles 1E L& 2E now available with Pro-Quick™ Quick Change Style Spindles!
- Balanced heat-treated gear reversing mechanism minimizes strain and wear
- Reverses at twice forward speed to increase productivity and avoid tap jamming
- No tap overtravel … excellent for blind or shallow holes
- Bronze bushings at wear points supporting the spindle from Shank to chuck
- Extremely sensitive friction clutch engines conical surfaces of drive and reverse shells with smooth, "cushioned" action, allowing sensitive operator feel. Assures automatic tap perfection
- One-piece TRU-GRIP or Pro-Quick spindle assures true alignment
Style E Instruction Manual
Style F Instruction Manual
Series |
Included |
Net Weight |
Max Speed |
|---|---|---|---|
11000 |
2 wrenches |
3 lbs. |
3000 |
12000 |
2 wrenches |
6 lbs. |
2000 |
13000 |
2 wrenches |
12 lbs. |
1000 |
14000 |
2 wrenches |
18 lbs. |
800 |
* Collets not Included with Tapping Heads
Tapping Heads can be used in Horizontal position with slight change in oiler location.
Factory can easily alter any Model for left-hand Tapping. To include left hand modification with new tapping attachment, include part #57550.
Note: Lead Screw Style Tappers must also use left hand lead screws.

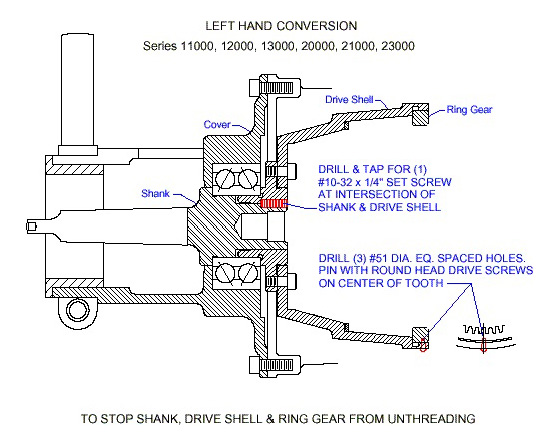

Click here to view left hand conversion.
Morse Tapper and Straight Shank Style
| Order No. | Style | Shank | Capacity (cut thread) | ||
|---|---|---|---|---|---|
| Aluminum | Mild Steel | ||||
| Inch / MM | Pipe | Inch / MM | |||
| 11001-11006** | 1-E | 1-2-3MT, 1/2"s.s. | 1/4" (M6) | – | #10 (M5) |
| 12001-12006** | 2-E | 1-2-3MT, 1/2"s.s. | 1/2" (M12) | 1/8" | 5/16" (M8) |
| 13002-13006 | 3-E | 2-3-4MT, 3/4"s.s. | 3/4" (M18) | 1/4" | 1/2" (M12) |
| 14002-14006 | 4-F | 2-3-4-5MT, 3/4"s.s. | 1-1/8" (M27) | 3/4" | 1" (M24) |
** Add "QC" to end of Order No. for Quick Change Spindle
| Tapping Head Dimensions | ||||
|---|---|---|---|---|
| Series | A | B | C | Wt. |
| 11000 / 1E | 5-1/8 | 3-1/2 | 3/4 | 4 lbs |
| 12000 / 2E | 7-1/2 | 4-7/16 | 1 | 8 lbs |
| 13000 / 3E | 8-3/4 | 5-7/8 | 1-3/8 | 15 lbs |
| 14000 / 4F | 10-1/4 | 6-1/2 | 2 | 23 lbs |
Cover Clamp Style Tapping Heads
- Mount directly to drill press quill for greater rigidity and accuracy
- These Models recommended for production runs
- Available for practically every drill press
- Enclosed drive for safety
Style |
Order No. |
|---|---|
1-E |
11035-11099** |
2-E |
12035-12099** |
3-E |
13035-13099 |
4-F |
14063-14099 |
** Add "QC" to end of Order No. for Quick Change Spindle. Specify make and Model of drill press. Adaption Sheet in pdf
Contact us for more information
