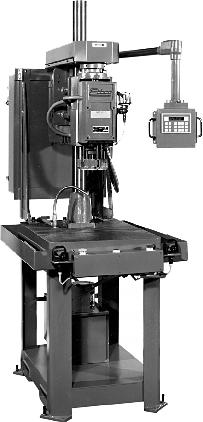

ATU-4 Production Tapping Machine and Tapping Unit
Precision lead screw tapping to keep your operation on the cutting edge of tapping hole production.
![ATU4P1 E/F Series](https://createch-design.com/wp-content/uploads/ATU4P1.jpg)
![ATU-4Unit E/F Series](https://createch-design.com/wp-content/uploads/ATU-4Unit.gif)
![ATU-4Machine E/F Series](https://createch-design.com/wp-content/uploads/ATU-4Machine.gif)
The ATU series tapping units and machines from ETTCO provide for precise efficient hole production at a fraction of the cost of CNC.
Equipped with a swivel-mounted programmable operator interface and controller, the reliable ATU-4 system promotes quick and precise setups. The operator interface displays alarms, and messages, and allows for bidirectional spindle jogging.
The ATU-4 is available as a standard vertically mounted machine or can be mounted explicitly in any position from vertical to horizontal The standard machine includes a welded steel base and table with 1-slot, coolant pump, and plumbing and safety interlocked double palm start buttons.
At a glance …
- 4″ of lead screw travel
- 30 cycles per minute possible
- Swivel-mounted operator interface terminal, with English or Spanish display
- Programmable controller
- 3.5 HP, 1140 RPM high reversing motor 230/460 VAC, 3-Phase, 60Hz power
Features & Specifications:
Unit & Machine:
- 4″ of lead screw travel
- 30 cycles per minute possible
- Solid-state programmable
- 35, 1140 RPM high reversing motor 230/46/360 reversing motor
- Pulley drive (370-1500 RPM)
- No hole protection
- Electrical control panel and controls for double palm push button operation
- Lead screw drip oiler, with an adjustable flow rate
- Resettable cycle counter, accessible through interface terminal
- Optional speed reducer to permit speeds as low as 55 RPM
Machine:
- Swivel-mounted operator interface terminal, with English or Spanish display
- 4″ Diameter column with raising & lowering mechanism

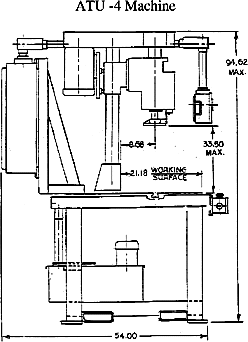

- 24″W X 36″H Machine base of welded steel construction
- 10 Gallon capacity coolant system
- Excellent power source for ETTCO multiple spindle heads
Price: Contact Factory
